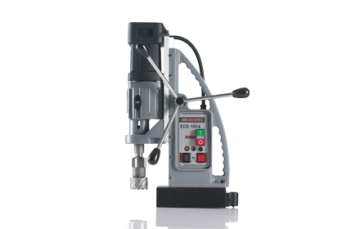

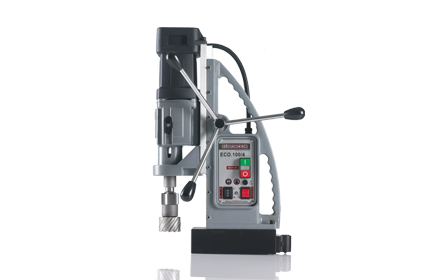

Manyetik Matkap ECO 100
Kategori
Stok Kodu
ECO-100
Teklif Al
Ürün İsmini Eksiksiz Girmenizi Rica Ederiz
| ANNULAR CUTTERS | ø 12 – 100 mm |
| ø 61 – 100 mm (MC.3/32) | |
| TWIST DRILLS | ø 1 – 31,75 mm |
| COUNTERSINKING | ø 10 – 50 mm |
| THREADING | M3 – M30 |
| LENGTH | 365 mm |
| WIDTH | 310 mm |
| HEIGHT | 510 – 710 mm |
| STROKE | 260 mm |
| WEIGHT | 28 kg |
| MAGNET (L x W x H) | 220 x 110 x 64 mm |
| MAGNETIC FORCE | 3000 kg |
| MOTOR POWER | 1900 W |
| TOTAL POWER | 2050 W |
| SPEED (no load) | (I) 42 – 110 min¯1 |
| (II) 65 – 190 min¯1 | |
| (III) 140 – 400 min¯1 | |
| (IV) 220 – 620 min¯1 | |
| SPEED (load 1900 W) | (I) 85 min¯¹ |
| (II) 152 min¯¹ | |
| (III) 270 min¯¹ | |
| (IV) 480 min¯¹ | |
| SPINDLE | Morse Taper 3 |
| VOLTAGE | 110 – 120 V / 50-60 Hz |
| 220 – 240 V / 50-60 Hz |
